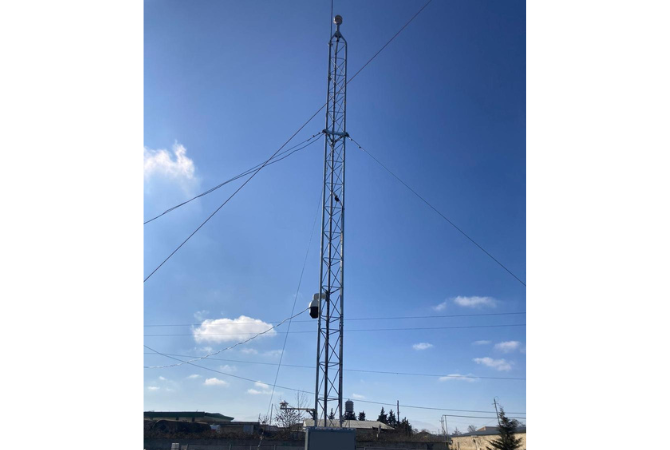

10 m Tower
Equilateral triangle welded truss design. Built-in 10 m lengths for mounting weather instruments. Tower provides extra strength & stability by adding three anchor rods, wire rope & associated hardware.
| Height | 10 m |
| Weight | 50 kg |
| Physical Properties | the mast is composed of 3 sections |
| Material | galvanized steel |
| Fixation | 3 stainless steel guy ropes in 6m height |
| Installation | easily transported and installed by two persons |
| Maintenance | easily lowered and erected by one person |
| Load capacity | with guy wires, withstands wind speeds up to 144 km/h |
| Paint | polyester powder coating (white / red) |
| Accessories (optional) | Universal Cross arm for up to 5 meteorological sensors (pyranometers, air temp and humidity sensors, snow height sensors, air quality sensors and etc.) |
